Streamlined by Design. Built for the Field.
The AERO Perforating System™ is a precision-engineered perforating platform delivering simplicity, certainty, and speed.
What Makes AERO Different
- Modular and Rugged – A single gun body supports both reusable and disposable configurations.
- No Field Wiring – Internal cartridge system eliminates human error.
- Plug-and-Play Logic – Integrated Control module reduces rig-up time.
Key Features

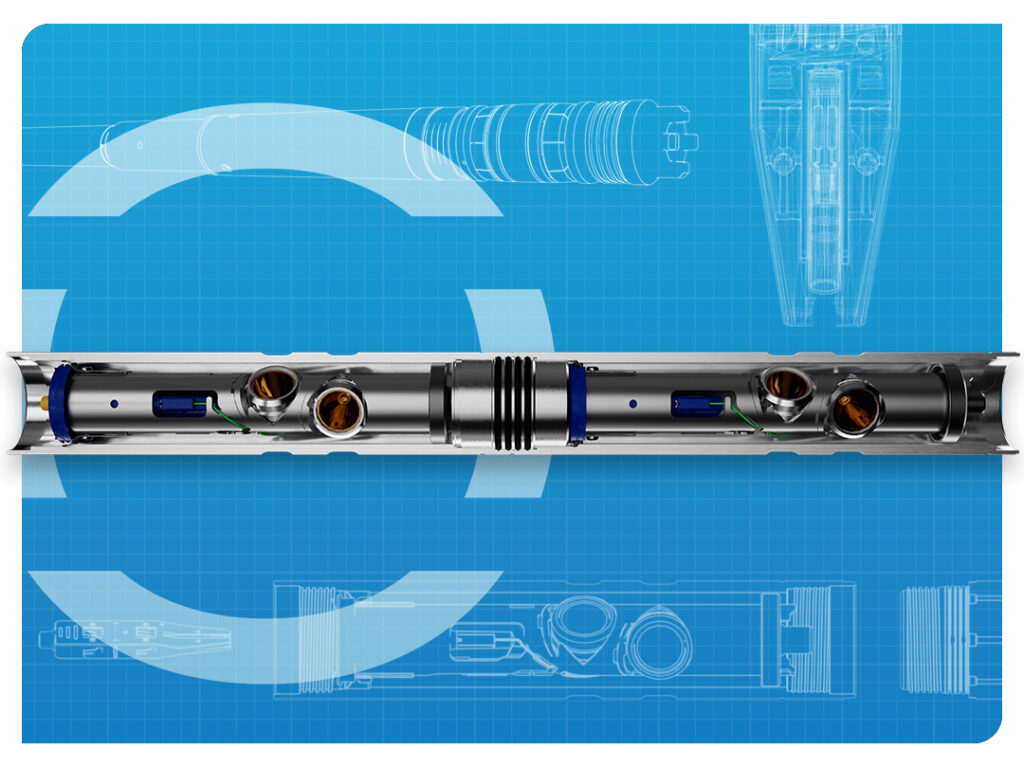

Factory Ready
Fully assembled and tested at Owen facilities — ready to run.
Fully Owen
Designed and built in-house with trusted components.

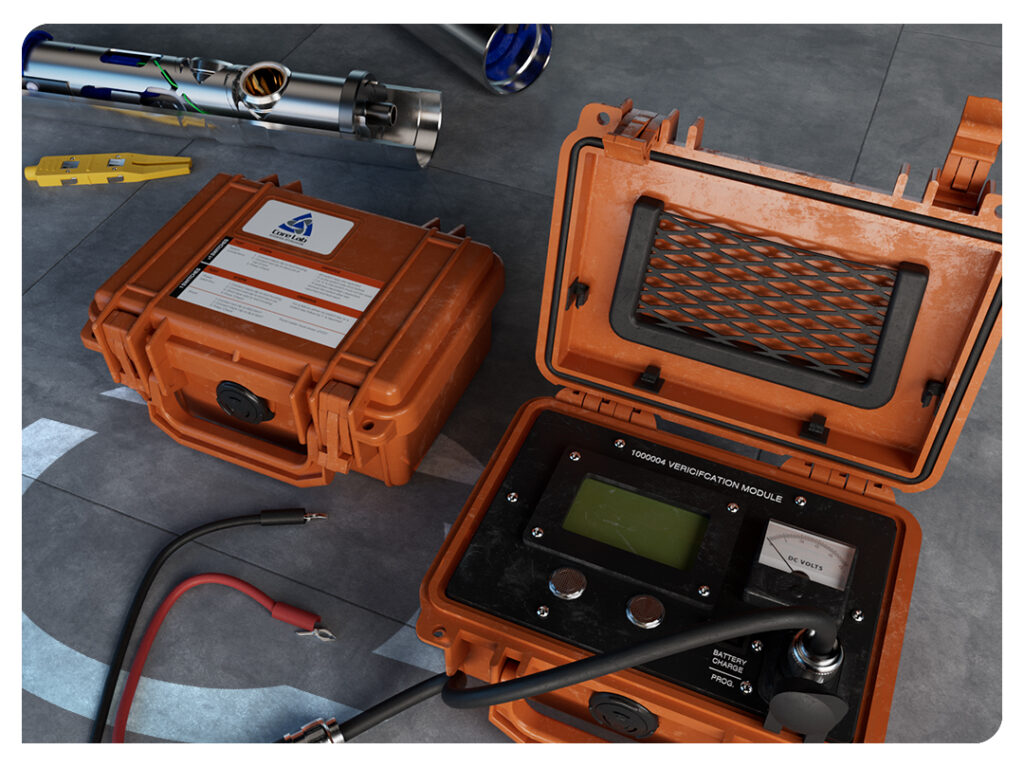

Inherent Safety
No wiring at the wellsite; complete surface diagnostics.

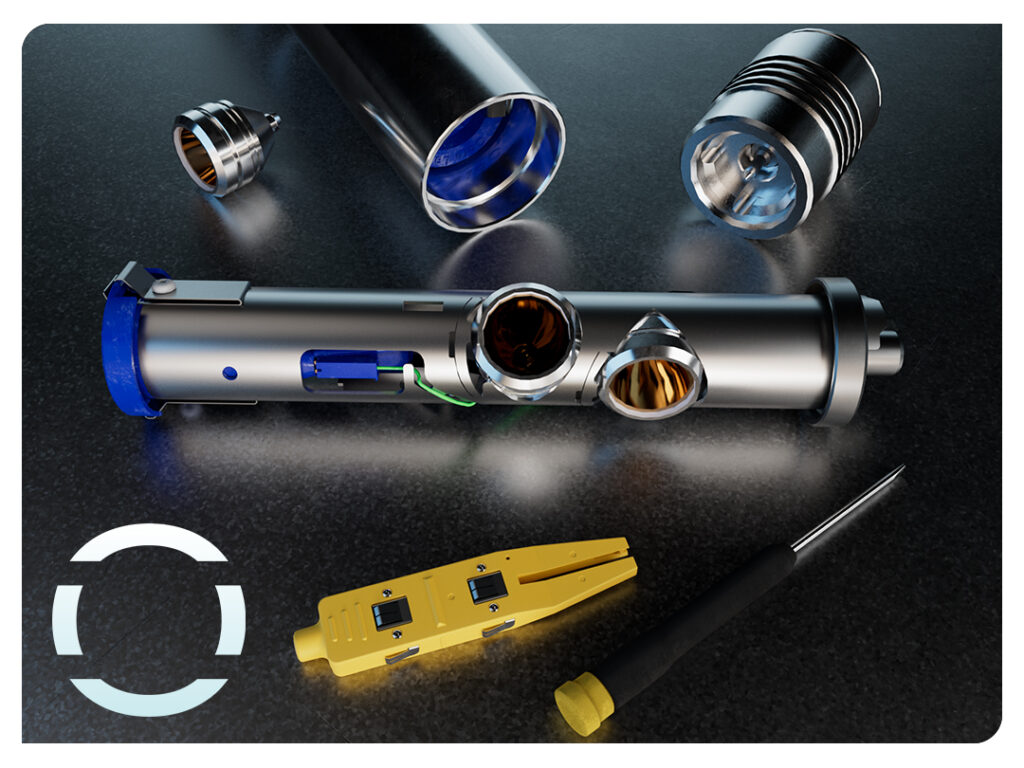

Fully Flexible
Reusable or disposable — adapt instantly to operational needs.
Technical Specifications
| Aero Perforating System™ | Aero Set™ | |
|---|---|---|
| Phasing | Fixed 0°, 60°, 90°, 120°, and 180° Oriented Customizable | n/a |
| OD | 3.13” | 3.25” |
| Length | 12” – 36” | 32.4” |
| Weight | Determined by Final Configuration | 30.5 lbs |
| Max. Setting Force | n/a | 55,000 psi (7” stroke length) |
| Temp. Rating | 350°F | 400°F1 |
| Pressure Rating | 20,000 psi | 20,000 psi |
| Factory Assembled | Standard | Standard |
| Posi-Set2 | Optional | |
| Plug & Play | Optional | |
| Firing Head Adapters | Baker 10, Baker 20, GO, Customizable | |
| Bottom End Adapters | Baker 10, Baker 20, GO, Customizable | |
| 1 When run with the Aero Control™ switch assembly, temperature is limited to 350°F. 2 Posi-Set is a feature where the power charge installation physically makes the electrical connection for the igniter and setting tool. |
||
