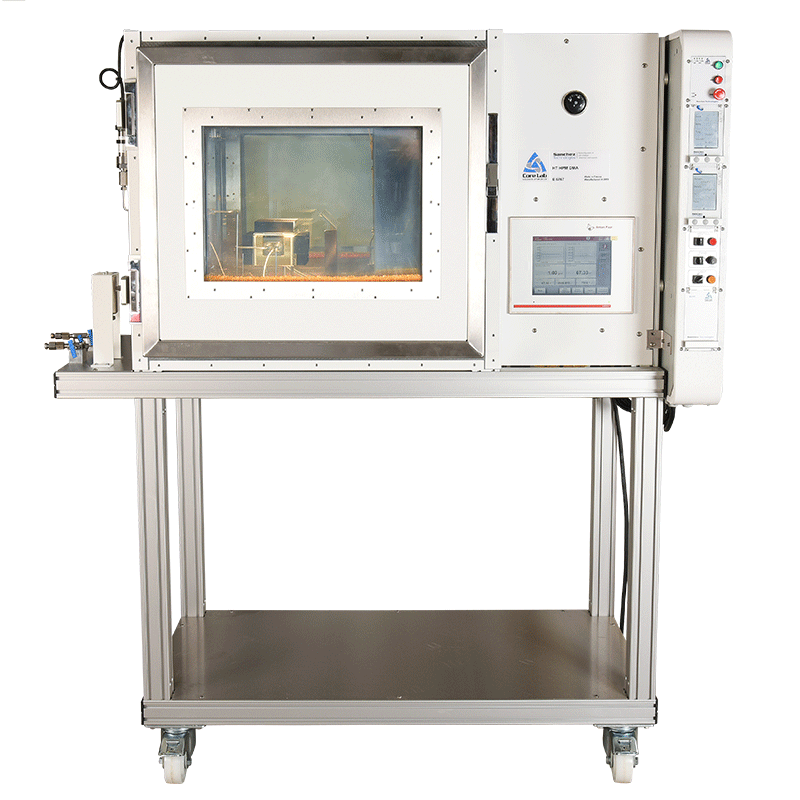

HPM Densitometer System
The HPM Densitometer System was developed to allow the measurement of dry gases to fluid densities at elevated temperatures (max. 2000°C, 3920°F) and pressures (max. 20,000 psig). The oven is also capable of operating at sub-ambient temperatures (min. approx. 10°C, 180°F below ambient) due to the inclusion of an air vortex cabinet cooler.
Documentation
The density measuring module HP HT DMC associated to the evaluation unit mPDS determines the density at reservoir pressures (up to 1400 bar) and temperatures (up to 200°C).
HP HT DMC is commonly used in reservoir studies either integrated into a PVT analysis system or with slim tube apparatus for enhanced oil recovery (EOR) experiments. HP HT DMC can be proposed in two different design for temperature generation and control: first option a thermodynamic bath, second option a climatic air bath.
Standard Model Specifications:
- Volume of the sample in the measuring cell: 2 ml
- Working Pressure: 1400 bar (20,300psi)
- Density Range: 0 to 3g/cm3
- Density Resolution: Up to 0.00001g/cm3
- Working Temperature: -10 to +200°C
- Cell Material: Hastelloy
