PVT Cell 200 ml 1000 bar Black Oil

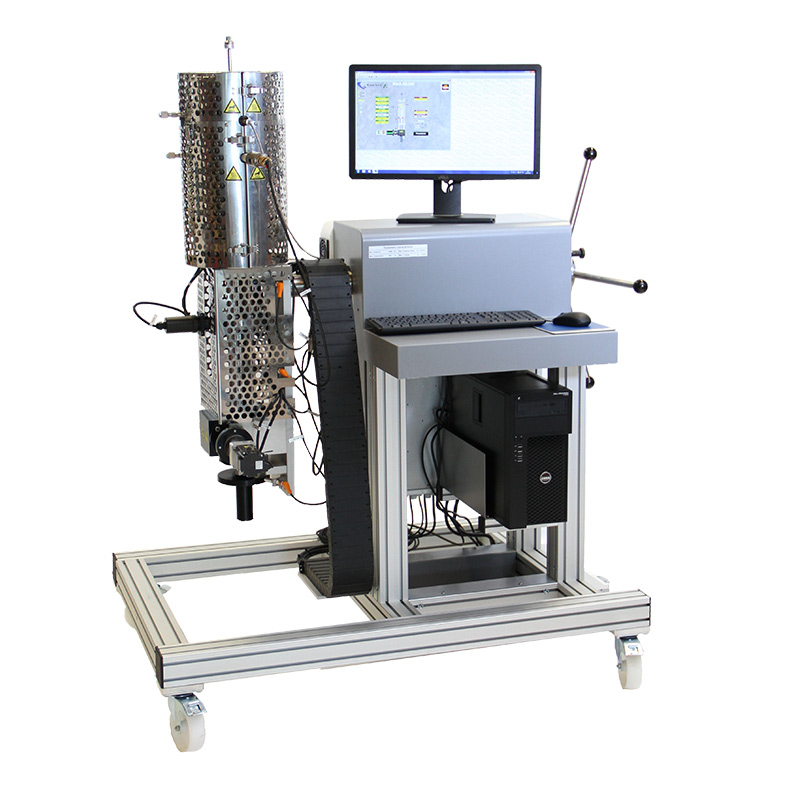

Black Oil PVT cell is an automatic motorized piston driven system, equipped with sapphire window on top of the cell. Special designed magnetic stirrer is equipped on top of piston for stirring of heavy oil (viscosity up to 5,000 cP), manual mechanism rotation.

Ask an Expert


The control cabinet may be able to manually set, control and record the temperature, pressure and volume of PVT cell, and set and control temperature of constant control system.

The system is supplied with PVT data processing, FALCON® control software and macro functions for automation, with synoptic giving access to data acquisition and graphs. This software controls all P, V, T parameters from sensors, motor, etc. Computer can control experiment processing and do the acquisition and processing of experiment data.

The PVT cell uses piston gasket, no O-ring, for high temperature and pressure. Each set of piston gasket can be used for more than 100 black oil sample analysis without disassembly. The cell can be returned head up and down. Incorporated valves and diaphragm sensor avoid dead volume.
