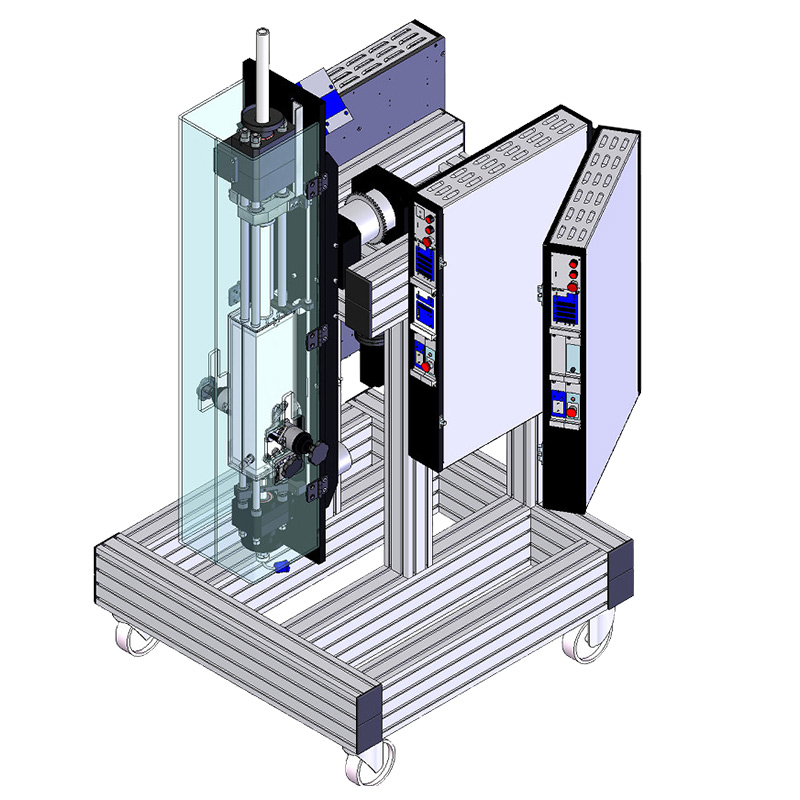

PVT Cell 250 ml 1000 bar Gas

The PVT Gas 250-1000 can determine and measured PVT (Pressure Volume Temperature) behavior of a reservoir fluid like condensate gas.

Ask an Expert

Documentation

Associated to our GAS 10000 T Gasmeter, it’s possible to measure:

  • Dew point pressure
  • Gas Z factor in pressure and temperature
  • Hydrocarbon phases volume at pressure and temperature equilibrium
  • GOR (Sm3/m3) by liberated gas measurement in the gasmeter on liquid volume measurement in the high pressure cell

The cell is able to study light hydrocarbon mixture (high GOR > 20 000 Sm3/m3), slightly acid and who can contained H2S or CO2.
