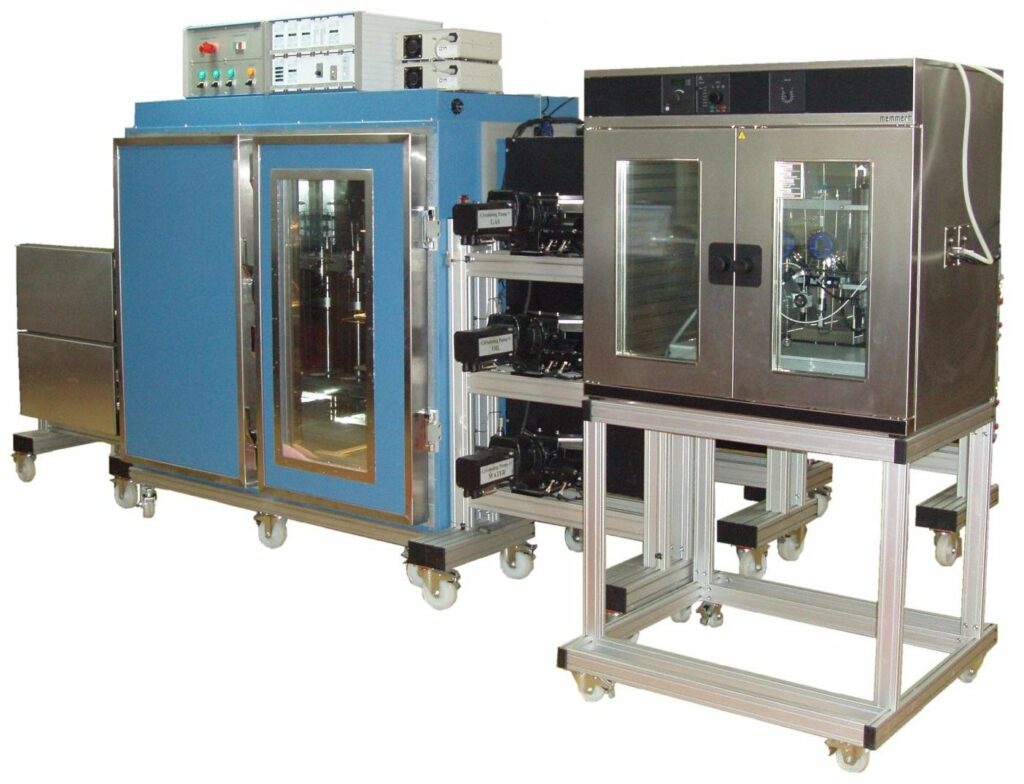

Relative Permeability System 1000 bar
The equipment is composed of :
- 3 bottles containing oil/water and gas connected to 2 double continuous injection
- A triaxial core holder cell
- A three phases separator
- 2 collecting pumps for oil and water production
- 3 double circulating pumps for steady or unsteady state measurement
- A double pump for overburden pressure
Documentation
The synoptic enables to display parameters, to carry out the displacement controls of the pumps and to plot graphic of PVT parameters. It controls all the parameters displayed on the electrical cabinets.
