Type A Bridge Plugs

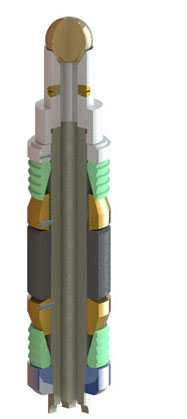

The Owen Type ‘A’ Wireline Set Millable Frac Plug is a compact unit, designed for multizone stage fracturing of gas wells. The plug is constructed of easily millable cast and ductile iron, with conventional two slip design. A large diameter bore extends through the plug with a beveled entry provided as a seat for the phenolic frac ball.
Documentation
Benefits/Capabilities:
- Compact unit designed expressly for multi-zone fracturing of gas wells
- Shear screw setting design allows for the frac ball to be run in place
- The bottom is notched to allow lower zone gas flow, even when frac ball from a previously set lower plug has flowed up to the bottom of plug
- Rated to 6,000 psi
