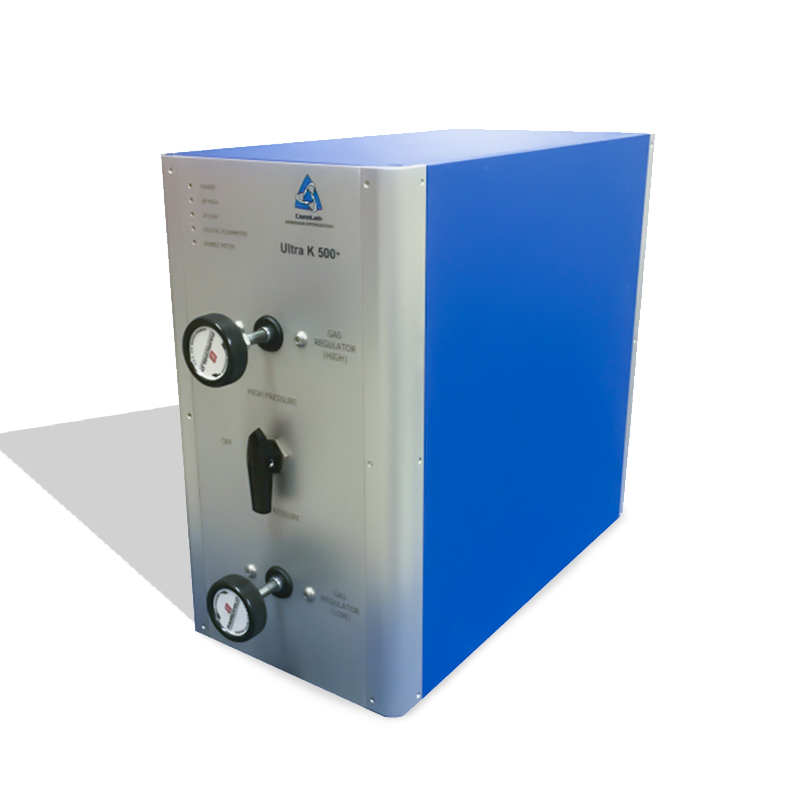

UltraPerm Gas Permeameter

ULTRAK-500+ is a digital, steady state gas permeameter system for plug size and full diameter core samples. The UltraK-500+ utilizes advanced precision flow measurement technology and a differential pressure transducer array to bring steady-state gas flow measurements to a new level of sophistication.

Ask an Expert

Combining automated data acquisition with a real time graphical interface, the accuracy and the precision of measurements is enhanced. Visual color changes in the pressure and flow rate displays alert the operator to data being collected in either the bottom 5% or the top 5% of the relevant device’s operating range. The software guides the operator to set the most suitable flow rate and pressure combination for the measurement. Thereby, the laminar flow regime required for the application of Darcy’s Law is met. Criteria derived from Section 6.8 of the American Petroleum Institute’s “Recommended Practice for Core Analysis” is used to determine the transition from laminar flow to turbulent flow within the core sample.

Data files are stored in HTML format allowing seamless importation into databases and spreadsheets such as Access and Excel. The UltraK-500+ is compatible with both ambient and reservoir stress determinations using existing core holders.

Scope of Supply:

UltraK-500+ complete with: Instrument Cabinet, Computer, Monitor, Microsoft Windows and the UltraK-500+ operating software.


API Recommended Practice 40 for Core Analysis; Section 6 Permeability Determination.

Options: Overburden Core Holder Assembly
