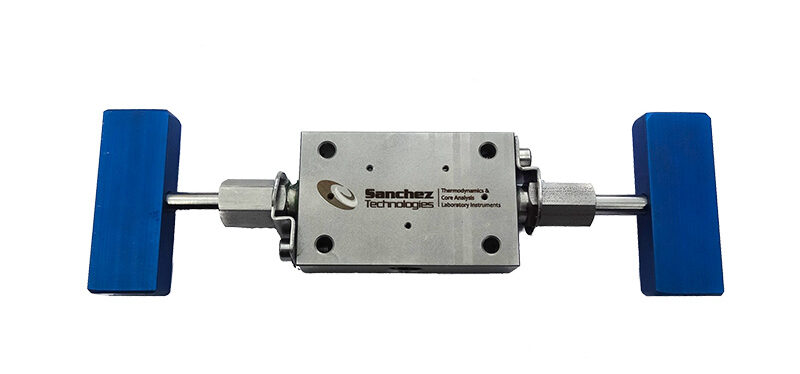

Manual Valve – VMP 15000
Why Choose Sanchez Technologies Manual Valves?
- No play between stem and handle
- Available upon request in different materials adapted to corrosive fluids and/or special temperature
- Available with high-safety olives
- High Pressure connection by mounted olives
Documentation
Specifications:
- Working Pressure: From 0 to 1000 bar (15,000 psi)
- HP Tubing Outside ø: 1/8″ or 1/16″
- Inside ø: 1mm
- Weight*: 130 to 175 gm
- Dimensions*: 69mm to 110mm x 40mm x 12mm
- Maximum Working Temp: 185 °C
- Sealing: Metal/Metal
- Particularities: Rotating Stem, Delivered with ferrules and gland nuts
*model dependent
